UM10 Series

Product Features

Fabricated of #18 gauge stainless steel with #4 satin finish

Custom lengths, heights, and angles available

Product Specs

Corner Guards: Fabricated of #18 gauge stainless steel with a #4 satin finish on all exposed surfaces with a radius on the leading edge at the 90 degree bend. Bends are available other than 90 on request. Standard leg sizes are 3 1/2"(89mm) but are available upon request for other sizes. Max height is 96". The edges of the legs have a slight bevel for a tighter fill to wall surface and for safety.

Screw holes: Advise number of holes if required, if any. Standard diameter hole is 1/4"

Standard Leg Size: 3 1/2" x 3 1/2" (Other sizes available upon request)

Standard Height: 48" (Other heights available upon request)

Ordering Information: When ordering UM10 corner guards, be sure to specify the height and leg size.

Installation Instruction

Provide an area on wall surface at desired or specified location. Transfer mounting points if holes are required and secure with proper fasteners per application.

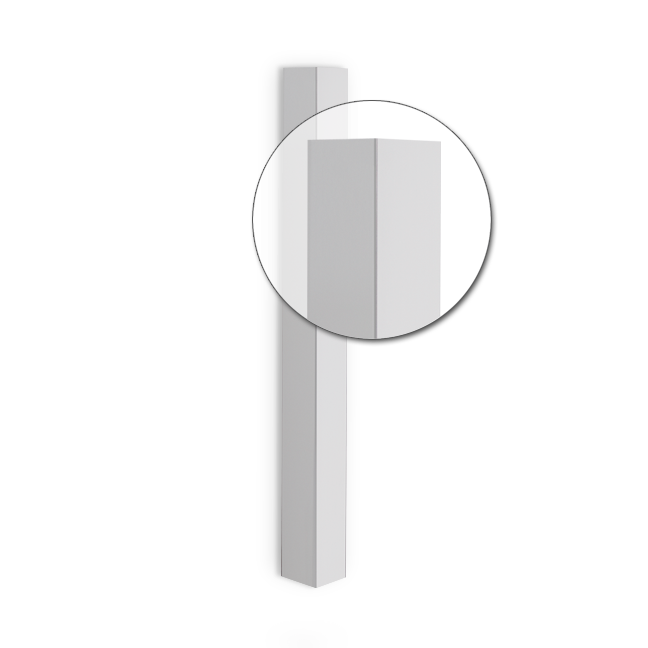

UM10-0348

Finished Wall Corner Guard
