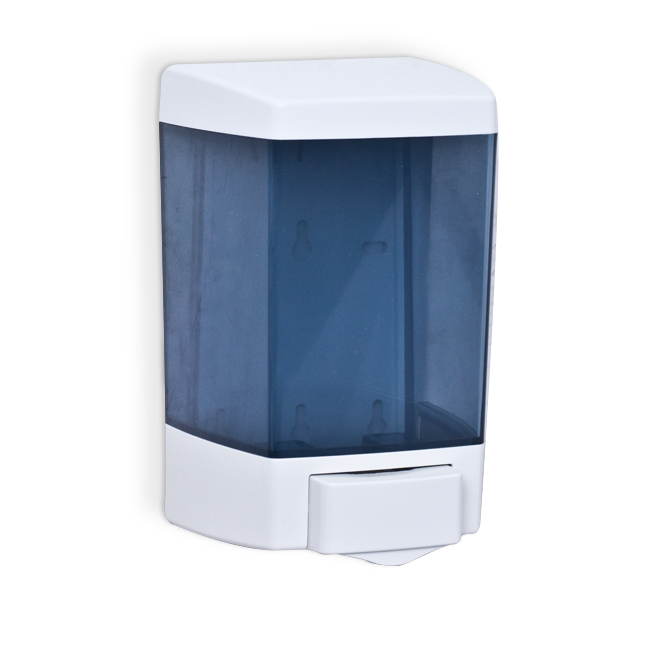

U144

Product Features

Fabricated of high impact ABS material

Holds 45 fl oz. of liquid soap or hand sanitizer

Easily operated with one hand

Product Specs

Tank: Fabricated of translucent high impact ABS material with a smooth curved design.

Body & Cover: Fabricated of white high impact plastic material. Hidden security locking mechanism prevents vandalism. Large convenient filler cap allows easy servicing of dispenser.

Valve: Fabricated of high impact plastic material that will dispense most liquids and lotions. Unit will not dispense foam or pumice soaps. Large push bar allows easy one hand operation that requires less than 5 lbs of force to operate. When properly mounted dispenser will comply with ADA code.

Overall Size: 5 1/2"x W x 8 1/2"H x 4 1/2"D 140mm x 216mm x 114mm

Capacity: 46 fluid oz.

U144-FOAM: Same as U144, though will dispense foam soap in lieu of liquid soap.

Installation Instruction

If mounting on wall surface, transfer mounting hole dimensions from back of unit to wall surface. Drill pilot holes and secure unit to surface with proper fasteners. Sensor cannot be any higher than 40" above finished floor to comply with ADA code.


*It is not recommended to mount any soap dispenser on mirrors


**For best performance, use pre-mixed low concentrate solutions. Dispensers should have periodic maintenance performed to insure the life of the dispenser. Rinse out bottle and valve with warm water to prevent sludge buildup.


Preventative Maintenance: Each dispenser should be flushed out aprx every 30 days with warm water to prevent valve from clogging with old soap. Do not use abrasive cleaners to clean dispenser.

U144

ABS Soap Dispenser
