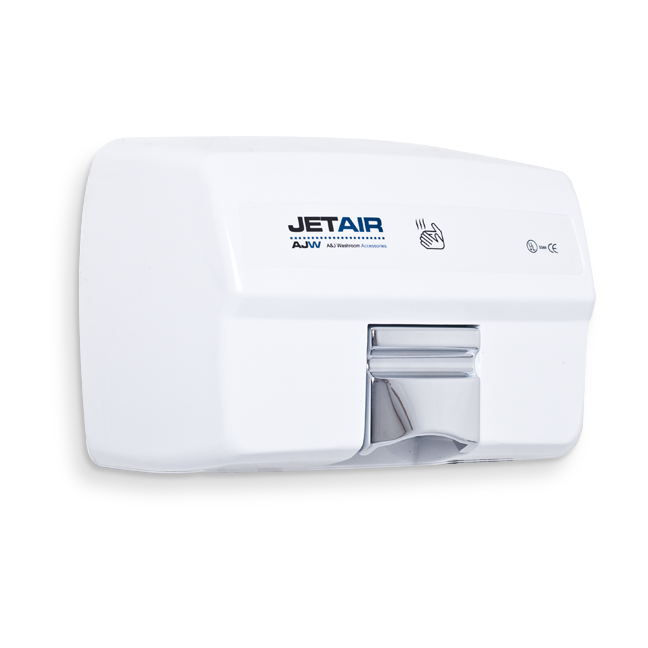

Fabricated of a heavy die cast aluminum with baked white enamel finish
Hands free electric sensor provides easy operation
Features a powerful 3450 RPM motor
Dryers come with a 5 year limited warranty
Motor: Brushless 3450 RPM, 1/8 hp motor, capacitor initiated, thermally protected against overheating.
Fan: Dynamically balanced to eliminate vibration/noise.
Heating Element: 2300 watt nichrome wire, mounted on state of the art convective heating injection system mounted to blower housing, protected by integral safety circuit breaker.
Timer: Fully enclosed electronic timer that automatically turns off when hands are moved away from path of sensor.
Electric Eye: Sensor allows a hands free operation. When sensor beam path is disturbed, dryer will automatically turn on. When hands are moved away from beam, dryer stops.
Cover: Heavy die cast aluminum with baked white enamel finish and ribbed for added strength. Secured to base with two theft resistant fasteners. Chrome plated nozzle can be fixed or two position.
Base: One piece #14 ga steel with 3/4” returns to wall for maximum strength and rigidity.
Unit Volts Amps Cycles
U1525EA-120V 110-120 20 60
U1525EA-220V 208-230 10 60
Overall Size: 12 7/8”W x 8 3/4”H x 6 5/8”D
327mm x 222mm x 168mm
Coordinate installation with contractor, architect and licensed electrician. Transfer mounting points to wall surface with supplied template. Check all code requirements for proper mounting heights. Secure base to surface with proper fasteners per applica
