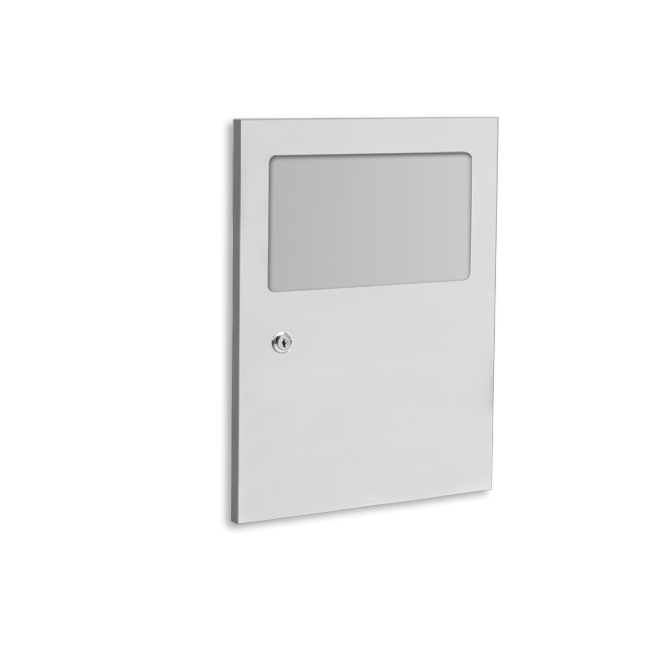

U5814
Product Features
Fabricated of #22 gauge stainless steel with a #4 satin finish
Waste receptacle has a 1.5 gallon capacity
Unit features Uni-door construction
Product Specs
Body: Fabricated of #22 ga stainless steel. Face trim is an integral part of the body with a #4 satin finish and 1/4" returns to wall surface for rigidity.
Uni-Door: Fabricated of #18 ga stainless steel with a #4 satin finish with 1/2" returns to wall for rigidity.
Push Panel: #22 ga stainless steel self closing push panel door.
Waste: 1.5 gallon removable waste behind door.
Locks: Pin tumbler commercial quality locks, keyed like all other AJW cabinets.
Hinges: Full length, heavy duty, stainless steel hinge.
Collars: #22 ga stainless steel finished and sized to match cabinet.
Overall Size: 13"W x 17"H x 4 1/2"D
330mm x 432mm x 114mm
Wall Opening: 11 1/2"W x 15 1/2"H x 4"D
292mm x 394mm x 108mm
Capacity: 1.5 gallons (.2 cu ft)
U5814-S2: semi-recessed with 2" wall opening
U5814-SM: Surface mounted
Installation Instruction
Coordinate installation with architect or contractor to avoid interference with pipes, vents, etc. Provide a rough wall opening 11 1/2"W x 15 1/2"H. Verify depth for either the recessed or semi-recessed model. Remove waste from cabinet and secure in openi
