U466

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Product Specs

Waste: Fabricated of #22 ga stainless steel with a #4 satin finish on all exposed surfaces. All leading edges are hemmed and have a radius to prevent injury.

Back: Fabricated of stainless steel formed for rigidity with multiple welds to cabinet body.

Overall Size: 20 1/2" W x 23"H x 14 1/2"

520mm x 584mm x 368mm

Waste Capacity: 13.5 gallons (1.8 cu ft)

Installation Instruction

Provide an area on wall surface at desired or specified location. Hold unit to wall surface, making sure unit is level and transfer mounting points. Drill pilot holes. Using proper fasteners per application, secure unit to wall surface.

U466

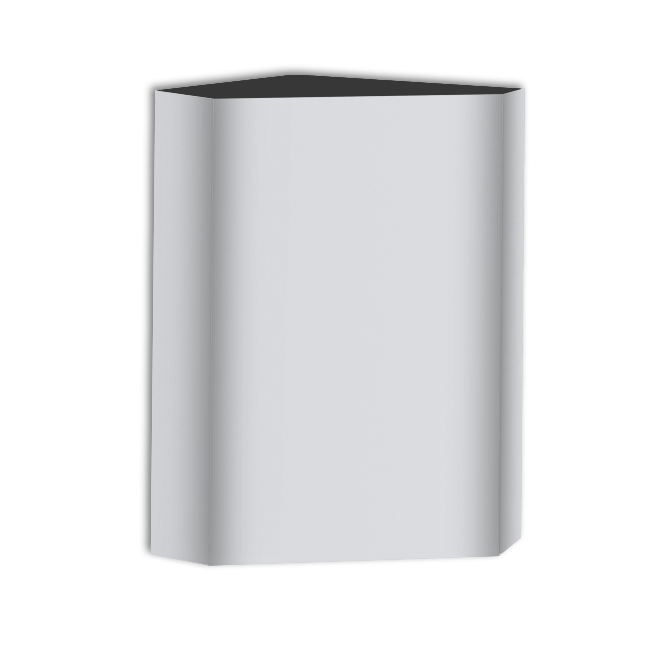

13.5 Gallon Corner Waste Receptacle - Surface Mounted





Technical documents
