U985 Series
Product Features
FDA approved injection molded polypropylene with microban antimicrobial additive
Availible in Granite and Grey
Capable of supporting up to 400 lbs when properly mounted
Product Specs

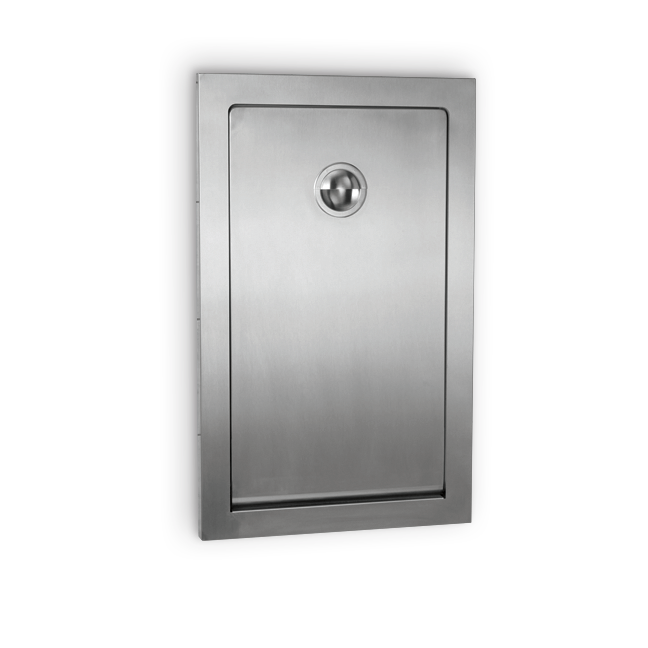

Body: Fabricated of high impact ABS polyethylene with radius leading edges that prevent injury. Material is odor resistant and easy to clean and available in External Wrap: Fabricated of #18 ga stainless steel with a #4 satin finish. Wrap is reinforced with a full length steel on steel mechanism with #11 ga mounting plate.
Liner Dispenser: An integral part of body that is standard with each unit.
Gas Shocks: Concealed gas spring actuators ensure a safe and smooth open and close motion.
Safety Straps: Snap lock fasteners to hold child securely in place.
Overall Size: 24 1/4”W x 39 1/2”H x 5 1/4”D (closed)
615mm x 1003mm x 133mm
Wall Opening: 22 1/8”W x 35 5/8”H x 4”D
561mm x 904mm x 101mm
Color Available: Grey
Installation Instruction
Coordinate installation with architect or contractor to avoid interference with surrounding objects in and out of wall. Provide a rough wall opening 22 1/8"W x 35 5/8"H x 4"D. Making sure unit is level, secure with proper fasteners for each application. (
