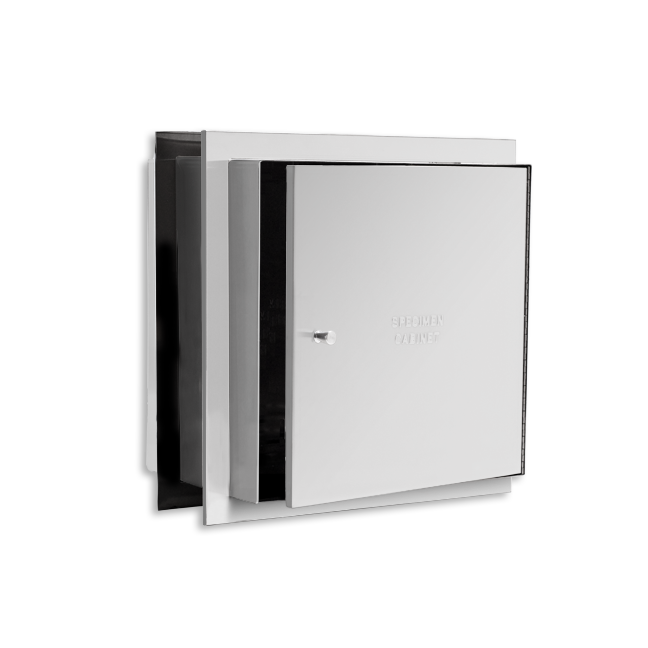

U905
Product Features
Fabricated of #22 gauge stainless steel with a #4 satin finish
Flanges are Fabricated of #22 gauge stainless steel with a #4 satin finish
Includes removeable spillage tray for easy cleanup
Made with heavy duty piano type hinges
Product Specs
Body: #18 gauge stainless steel, All exposed surfaces have a #4 satin finish. Self closing devices extends through cabinet working by a push-pull method allowing one door to open when the other door is closed. Each door is equipped with a knob for easy opening. Spillage Tray is provided with all units
Flanges: #22 gauge stainless steel with 1/4" returns, adjustable to fit openings 2 3/4" -8"D There are no visible seams or miters on face of flanges.
Hinges: Heavy duty full length stainless steel piano type.
Overall Size: 14 1/4"W x 14 1/4"H x 8 1/4"D
362mm x 362mm x 210mm
Wall Opening: 12 1/2" x 12 1/2"
318mm x 318mm
*Adjustable to fit partition openings 2 3/4" x 8"D (70mmx 210mm)
Installation Instruction
Coordinate installation with contractor architect to avoid interference with pipes, vents, etc. Provide a rough wall opening 12 1/2"W x 12 1/2"H. Depth of wall for recessing is 2 3/4" - 8". Remove adjustable flange from cabinet and insert into opening. In
