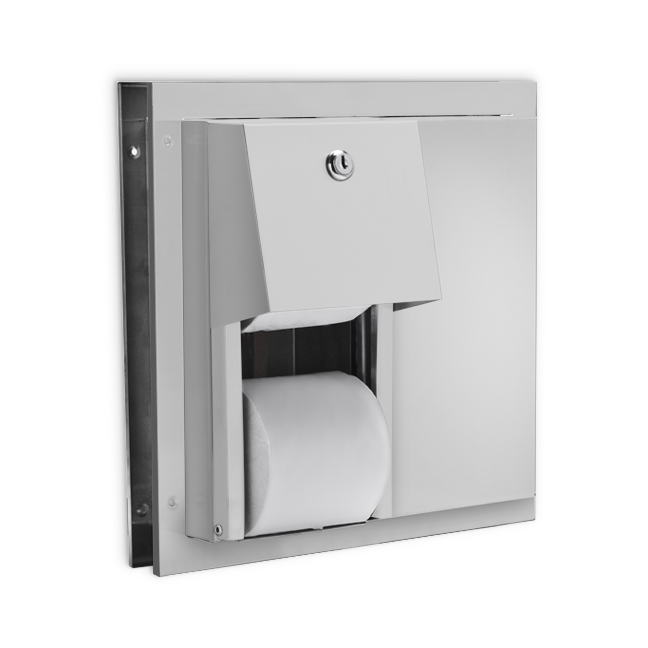

U842

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Holds two standard toilet tissue rolls

Partition Mounted Toilet Tissue Dispenser

Secured with pin tumbler lock, keyed like all AJW cabinets

Product Specs

Body: Fabricated of #22 ga stainless steel with #4 satin finish. Concealed inner dispensing mechanism is #18 ga stainless steel.

Back: Fabricated of #18 ga stainless steel with multiple welds to cabinet body forming a one piece construction.

Hoods: Fabricated of #18 ga stainless steel finished to match cabinet body. Hood is secured with stainless steel hinge rivets to cabinet body. Top roll of tissue will not drop down unless the bottom roll has been depleted. When unit is closed, this will provide a theft resistant, non-control operation and reduce vandalism.

Flanges: One piece construction without miters or welds fabricated of #22 ga stainless steel,#4 satin finish. Adjustable to fit 3/4" - 1 1/4" thick partitions.

Locks: Pin tumbler, commercial quality locks keyed like all other AJW cabinets.

Spindles: (U005) Fabricated of one-piece molded high impact black ABS material.

Overall Size: 14 1/4"W x 14"H x 9 7/8"D

362mm x 356mm x 251mm

Wall Opening: 12 1/2"W x 12 1/4"H

318mm x 311mm

Capacity: Four standard rolls with a 5 1/4" (133mm) OD.

Installation Instruction

Coordinate installation with architect or contractor. Provide a rough wall opening in mounting surface at desired or specified location making sure unit will be level. Open cabinet, remove spindles and adjustable flange. Insert into opening and secure uni

U842

Dual Stall Hooded Toilet Tissue Dispenser w/Auto Reserve - Parition Mounted - Non-Controlled







Technical documents
