U7204 Series

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Shelves are adjustable for easy storage

Unit features Uni-door construction

Product Specs

Cabinet Body: Fabricated of #22 ga stainless steel formed for rigidity. Embossed louvers in body allow shelving to be adjustable. Flange surrounds cabinet body that has 1/4” returns to wall. (No miters or welds)

Cabinet Back: Stainless steel secured to cabinet body with multiple welds to cabinet body.

Uni-Door: Fabricated of #18 gauge stainless steel with satin finish.

Frame: #22 ga stainless steel #4 satin finish.

Adjustable Shelving: Three (3) #22 ga stainless steel with #4 satin

Lock: Pin tumbler type.

Hinges: Full length, heavy duty stainless steel piano type

Collars: #22 ga stainless steel with #4 satin, one piece construction, finished to match cabinet body.

Overall Size: 16”W x 22”H x 4 7/8”D

406mm x 558mm x 124mm

Wall Opening: 14”W x 20”H x 4”D

355mm x 508mm x 102mm

U7204-1622-S2: semi-recessed Medicine Cabinet

Wall Opening: 2” wall opening required.

U7204-1622-SM: Full surface mounted cabinet.

Installation Instruction

Secure cabinet with proper fasteners per application. After cabinet checks good, install adjustable shelving. Unit can be mounted to have a right hand or left hand swing door. Collars can be added in the field to accommodate semi-recessing or full surface

U7204-1622

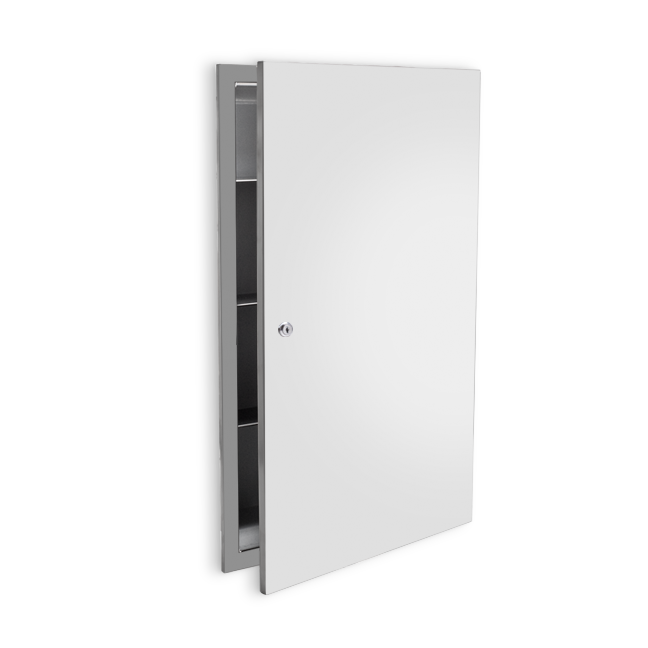

16"W x 22"H Unidoor Medicine Cabinet - Recessed
