U646 Series

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Holds one standard size roll up to 8" in diameter

Waste receptacle has a 8.5 gallon capacity

Lever-operation complies with ADA code

Easily operated with one hand

Product Specs

Body: Fabricated of #22 ga stainless steel with a #4 satin finish.

Flange: Fabricated of #22 ga stainless steel finished to match cabinet with 1/4" returns, (No miters or welds)

Cabinet Back: Fabricated of stainless steel formed for rigidity with multiple welds to cabinet body.

Cabinet Doors: Fabricated of #22 ga stainless steel with #4 satin finish, with full length door stop to reduce vandalism

Towel Dispenser: Roll towel mechanism is fabricated of #20 ga steel formed for rigidity, Unit will accommodate one 8" or 9" wide roll with a max OD of 7 7/8", Towel length dispensed has three adjustable settings, Lever is activated with one hand and less than 5 lbs of force.

Waste: Fabricated of #22 ga stainless steel with all leading edges hemmed. Unit is equipped with wire handle for easy handling.

Hinge: Full length, stainless steel piano type hinge.

Locks: Pin tumbler commercial quality lock,

Collars: Fabricated of #22 ga stainless steel, finished to match cabinet.

Overall Size: 14 1/4"W x 48"H x 10 1/4"D

362mm x 1219mm 260mm

Wall Opening: 12 3/4"W x 46 1/2"H x 10"D

324mmx 1181mm x 254mm

Waste Capacity: 8.5 gallons (1.16 cu ft)

Towel Capacity: One standard roll up to 8" wide (non-perforated)

*Recommended 600ft roll for best results.

Options:

-VL1: Reusable vinyl liner

Installation Instruction

Coordinate installation with architect and contractor to avoid interference with pipes, vents, etc. Provide a rough wall opening 12 3/4��W x 46 1/2"H, Required wall depth, will depend if full or semi recessing is required, If collar is required,

U646AW

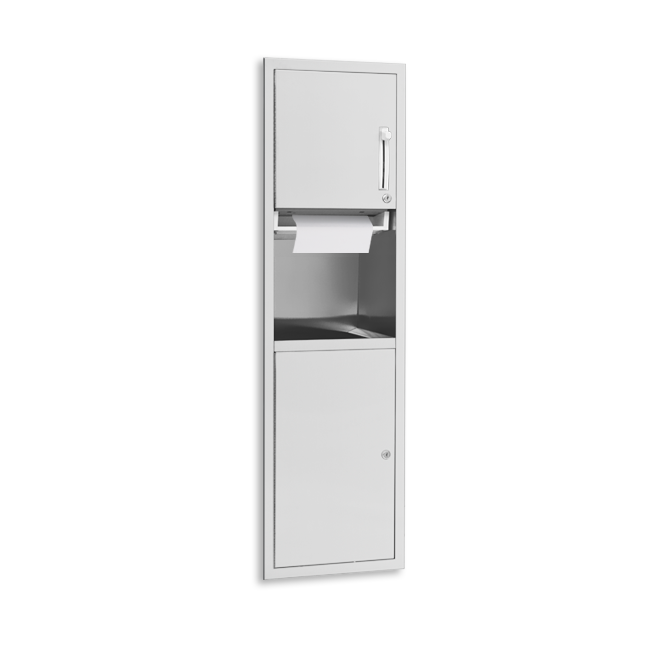

Lever Operated Roll Towel Dispenser & Waste Receptacle Combination - Recessed
