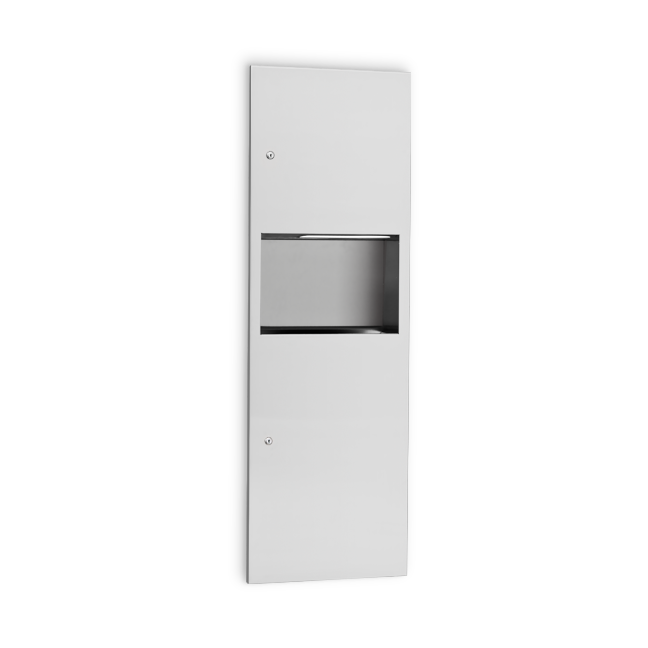

U6054
Product Features
Fabricated of #22 gauge stainless steel with a #4 satin finish
Holds 600 c-fold, 800 multifold or 1200 singlefold towels
Waste receptacle has a 10 gallon capacity
Unit features Uni-door construction
Product Specs
Body: Fabricated of #22 ga stainless steel with a #4 satin finish.
Flange: Fabricated of #22 ga stainless steel with a #4 satin finish and 1/4" returns to wall, no miters or welds.
Back: Fabricated of stainless steel formed for rigidity with multiple welds to cabinet body.
Door: Fabricated of #22 ga stainless steel with a #4 satin finish and full length door stops.
Towel Dispenser: Dispensing area has hemmed edges to prevent injury and towel tearing. Adjustable back allows c-fold and single-fold towels to be dispensed.
Dispenser: Dispensing area has hemmed edges to prevent injury and towel tearing.
Removable Waste Capacity: Removable steel waste with heavy duty handle for easy servicing.
Hinges: Heavy duty, full length, stainless steel piano type hinge.
Locks: Pin tumbler commercial quality keyed like all other AJW cabinets.
Collars: Fabricated of #22 ga stainless steel finished to match cabinet body.
Overall Size: 17 1/2"W x 54 1/4"H x 6 1/4"D
445mm x 1378mm x 159mm
Wall Opening: 15 3/4"W x 52 1/2"H x 6"D
400mm x 1339mm x 152mm
U6054-S2: 2" semi-recessed. Collar, 4" (102mm) wall opening
U6054-S4: 4" semi-recessed. Collar, 2" (51mm) wall opening
U6054-SM: Surface Mounted
Towel Capacity: 600 c-fold,800 multifold or 1200 singlefold.
Waste Capacity: 10 gallons (1.34 cu ft)
Options:
-VL1: Reusable vinyl liner
Installation Instruction
Coordinate installation with contractor and architect to avoid interference with pipes vents etc. Provide a rough wall opening 15 3/4"W x 52 1/2"H. Wall opening depth will depend on style mounting. If a collar is required, slip over back of unit. Remove w
