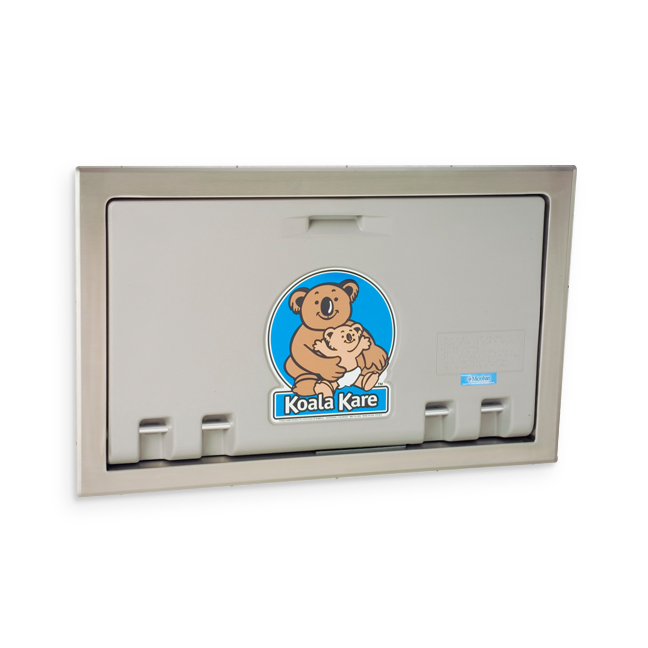

U986
Product Features
FDA approved injection molded polypropylene with microban antimicrobial additive
Availible in Cream and Grey
Product Specs
Body: Fabricated of high impact ABS polyethylene with radius leading edges that prevent injury. Material is odor resistant and easy to clean and available in cream or grey. Base is concave formed to allow safe and easy changing. Molded graphics and brail comply with ADA code.
Flange: Fabricated of #18 ga stainless steel with a #4 satin finish.
Liner Dispenser: An integral part of body that is standard with each unit.
Gas Shocks: Concealed gas spring actuators ensure a safe and smooth open and close motion.
Flange: #18 gauge stainless steel with a #4 satin finish.
Safety Straps: Snap lock fasteners to hold child securely in place.
Overall Size: 37”W x 23”H x 4 1/4”D (closed)
939mm x 584mm x 107mm
Wall Opening: 35 1/2”W x 20 1/2”H x 4”D
901mm x 520mm x 101mm
24”D (open) 610mm
Colors Available: Cream, Grey
Installation Instruction
Coordinate installation with architect or contractor to avoid interference with surrounding objects. Hold unit up to wall and open to verify there are no obstructions to interfere with operation of station. Provide a rough wall opening 35 1/2"W x 20 1/2"H
